Product Details

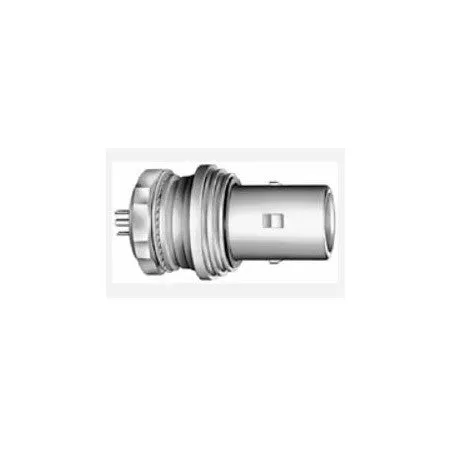

＋Fixed plug with round flange and tag, nut fixing.
Specifications:
- Keying: Circular (can rotate), plug has male contact(s)
- Housing Materia: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
- Cable Fixing: 0 - 0 mm
- Insert Configuration 4A.675 : 1 Triax (75 Ohm)
- Insulator T: PTFE
- Contact Type: Triaxial 75 Ohm (Solder)
- R (max): mOhm
- Rated Current (A): 6
- Vtest: 1200 V (AC), 1690 V (DC)
- Impedance: 75 Ohm
- Humidity (max): <=95% [at 60 deg C /140 F]
- Salt Spray Corrosion: >144 hr
- Climatical Category: 55/175/21
- IP Rating 61
